Current Location:Home -->PRODUCT & SERVICE -->Value added fabrication services -->Die-cut For Foam, Fliter Sponge
Filter Sponge:

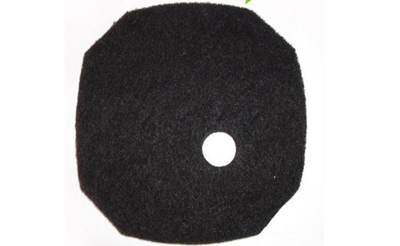

● Polyurethane Filter

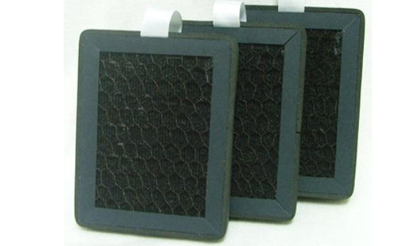

● Activated Carbon Filter
Application:
Household central, air conditioning, air purifier, aquarium smoke, lampblack, machine blower, air conditioning, room humidifying machine, Smoke machine ,special purpose equipment association had etc
Polyurethane Filter Typical Properties
| Title | Polyrethane Filter |
| Size | 1*2M(+/-10mm) |
| Thickness tolerances | +/-1mm |
| Hole diameter | 35PPI 40PPI 50PPI 60PPI (+/-3PPI) |
| Specific Gravity kg/m3 | ≦25 |
| Tensle Sterength Kpa | ≦65 |
| Elongation % | ≦75 |
| Moudulus 75% | ≦6 |
| Tear Strength N/cm3 | ≦5 |
| 65%25%Compressed Ratio | ≦1.5 |
| Static Resist | 8.0x1010 |
| Acid Alkali Resist | PII 5.0-8.0 |
| Air permeabilily | 95% |
| Wind Resistance | ≦90Pa |
Activated Carbon Filter Typical Properties
| Adsorption performance | Benzene ≧90% , Iodine ≧1000mg/g |
| Deodorant properties | B mercaptan ≧90% (120 minutes) Amino trimethylene ≧90% (120 minutes) |
| Activated carbon content | 135kg/m3 (±10kg) |
| Main material | Polyester ethyl carbamate bubble |
| Activated carbon materials | Nut shell activated carbon powder |
| heat-resistant (Temperature range) | 20°C-130°C |
| Operating cycle | ≧6months |
