Features and Benefits

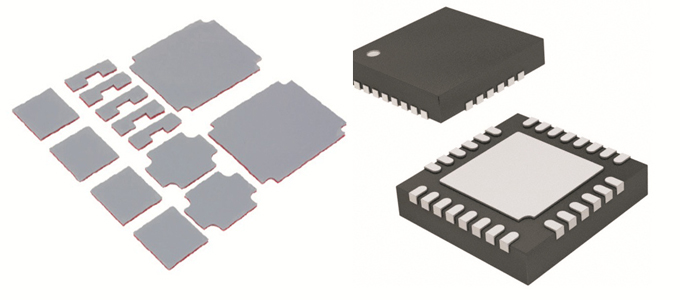

-TCPC series is solid at room temperature and is easy to handle during manufacturing, assembly.
-TCPC materials will be soften when reach to 55℃ of operating temperatures and flows to
give the high thermal performance typical of thermal grease.
Typical Application:
-Micro Processor Unit
-Graphic Processor Unit
-Power Semiconductors
-Digital/High Power CPU's
Typical Properties of Thermal Conductive Phase Change Materials
Properties
Units
TCPC120
TCPC300
Test Method
Composition
---
Boron Nitride filled silicone elastomer
---
Color
---
Pink/Yelow
Gray
Visual
Thickness
mm
0.127/0.25
0.127/0.25
---
Thickness Tolerance
+/-0.05mm
+/-0.05mm
---
Density(g/cm)
---
1.65
1.65
ASTM D792
Temperature Range
℃
-25 to 125
EN344
Phase Change Temp
℃
50~70
50~70/45
---
Dielectric Constant
1MHZ
13.1
13.3
ASTM D150
Thermal Conductivity
W/m.k
1.2
3.0
ASTM D5470
Note: Standard sheet: 460mm x 460mm , Custom configuration Available
